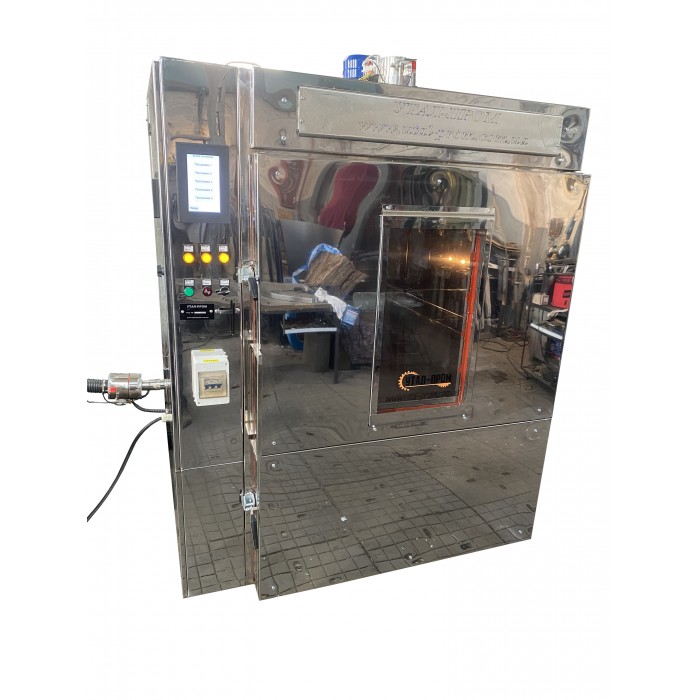

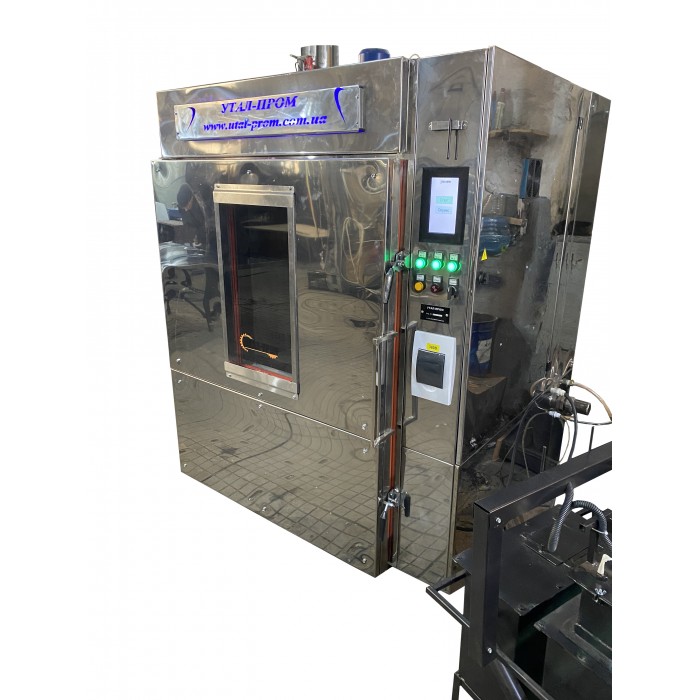

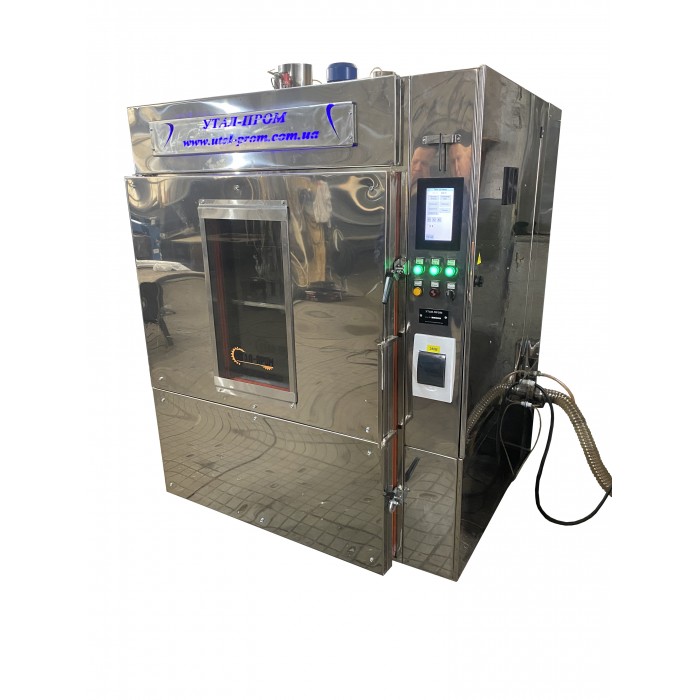

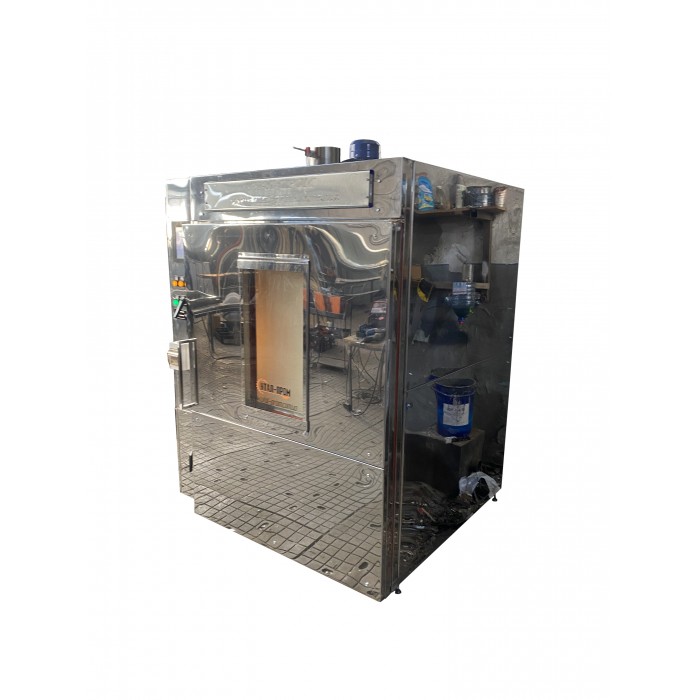

UTAL-1500 — automatic thermal smoking chamber with mobile control

The UTAL-1500 chamber can be fully controlled from a smartphone.

The UTAL mobile app lets you:

• monitor the process in real time
• receive push notifications at every stage
• change settings remotely
• start and stop processes
• connect employees with different access levels

You always know what is happening in the chamber — even when you are away from the production site.

This reduces errors, saves time and gives you full control over quality.

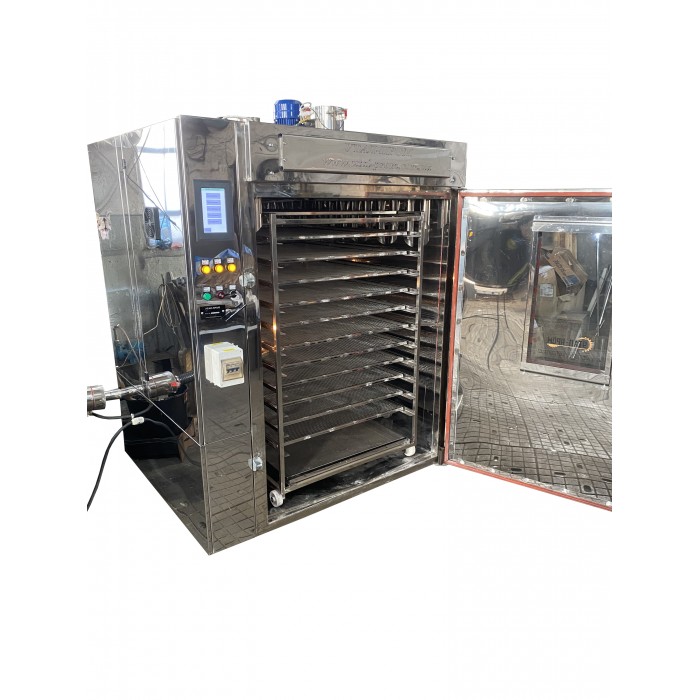

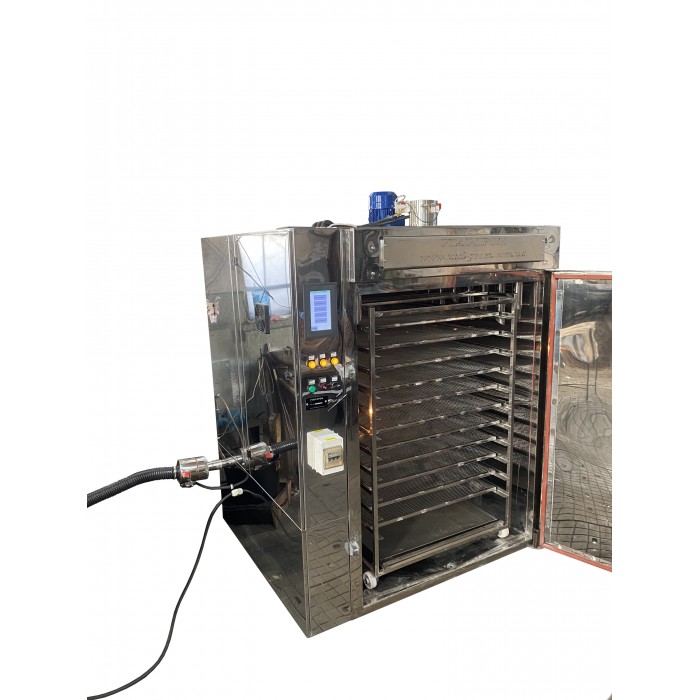

Chamber loading

The chamber holds 1 rack measuring 800х1000х1300 mm

Consistent results

UTAL-1500 lets you obtain a repeatable, predictable product.

The chamber provides:

• uniform processing throughout its volume
• precise temperature and humidity control
• gentle operating modes without overdrying

The result is consistent quality and a high product yield.

A complete heat treatment cycle in one chamber

You do not need several units.

UTAL-1500 performs:

• cold smoking
• hot smoking
• cooking
• drying
• roasting

All processes take place in one chamber, under full control.

Smart automation that works for you

The UTAL controller with a 7” touchscreen lets you:

• create up to 10 programs
• use up to 10 steps in each program
• set precise parameters for each stage

Flexible control of:

• dampers (as a percentage)
• smoke supply (by cassette)
• humidity
• airflow speed

Stages end:

• by time
• by product temperature
• by humidity

You set the logic — the chamber executes it.

Uniformity throughout the chamber

Carefully designed aerodynamics provide:

• the same temperature at every point
• uniform smoke distribution
• no overheating or “blind spots”

Precise temperature — down to ±0,5°C

• PID control
• 4 sensors (2 product sensors, a chamber sensor and a humidity sensor)

You control precisely, not “approximately”.

An efficient smoke generation system

• external smoke generator
• wood chips loaded in cassettes
• individual cassette control
• smoke cooling and spark suppression

Clean, consistent smoke without risk to the product.

Reliable construction and thermal insulation

• 100 mm insulation
• airtight door with a silicone seal
• 300×600 mm viewing window
• industrial construction

The chamber reliably maintains its operating conditions even with a heavy load.

Ease of operation

• wheels for moving
• adjustable supports
• electric damper actuators
• intuitive controls

Minimum unnecessary actions — maximum control.

Included equipment

• UTAL-1500 chamber
• smoke generator
• product documentation

Additional items:

• racks
• hooks
• skewers
• mesh trays

Who this chamber is for

• production workshops
• farms
• processing enterprises
• businesses with growing production volumes

Conclusion

UTAL-1500 is more than just a smoker.

It offers:

• increased capacity
• process automation
• remote control
• consistent quality
• profit growth
