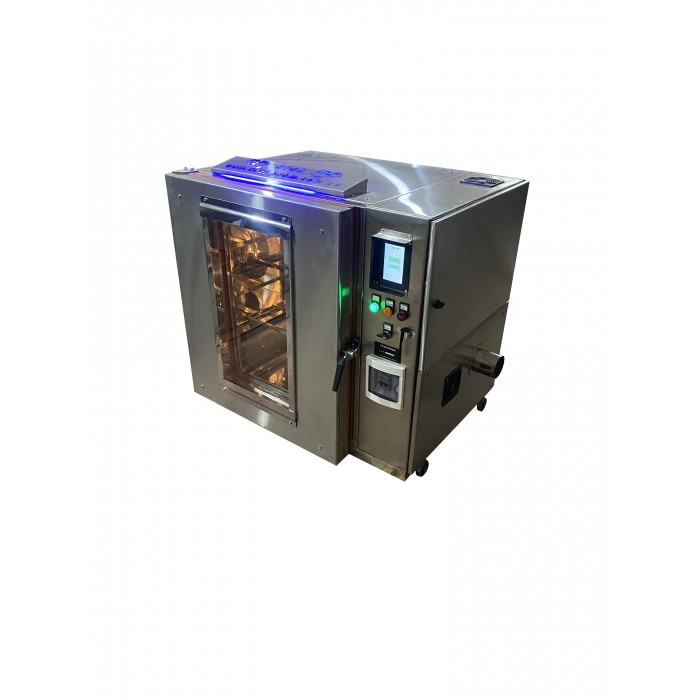

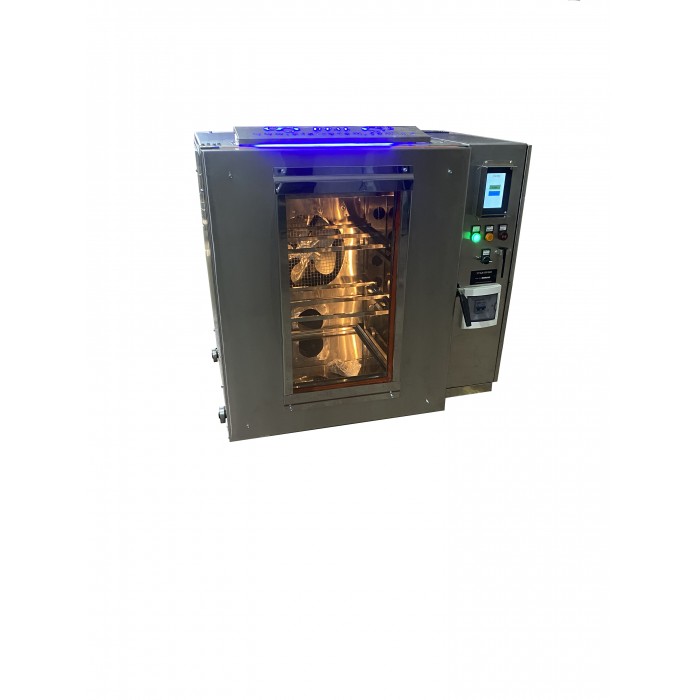

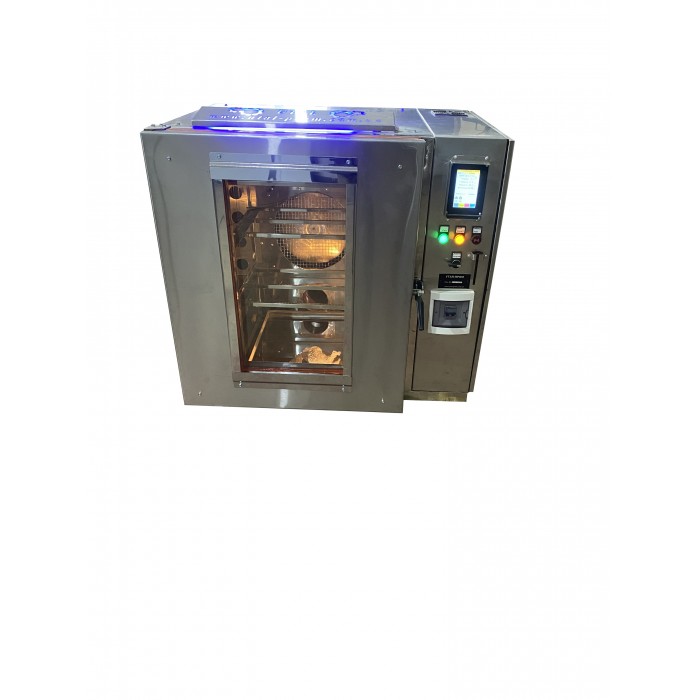

Professional UTAL-800 smoking chamber.
The chamber can be controlled remotely from a smartphone.
The smoker is designed to produce high-quality smoked products. The chamber offers cold smoking, hot smoking, cooking and drying functions.
Used in households, restaurants and processing enterprises.
An ideal option for starting your own business on Instagram, and for shops and cafés.
The chamber comes with a controller and a touch panel. The touchscreen is 5" in size. A 7" display can be installed as an option.
The UTAL controller is convenient and intuitive. It has the following functions:
Programming of 6 programs. Each program has 10 steps.
Selection of preset modes: smoking, drying, roasting, cooking, climate-controlled drying (optional), as well as a step with manually selected parameters.
Convenient damper operation. The process technologist can set the percentage opening of the dampers for each step.
For each smoking step, the process technologist can specify how many and which cassettes will operate.
The transition to the next step can be set by a timer or a specified condition (product temperature, humidity level during drying).
Airflow intensity can be regulated by a frequency converter (optional).
The process technologist sets the water injection intensity.
The service menu allows temperature sensor calibration, adjustment of the chamber's heating ramp using coefficients, and much more.
The internal fans on the rear wall use a system of air ducts to distribute temperature and the air/smoke mixture evenly. The product is processed uniformly throughout the smoking chamber. The chamber door is fitted with reliable latches and a food-grade silicone seal. A window in the chamber door allows visual monitoring of the processes. The viewing window measures 300х600 mm.

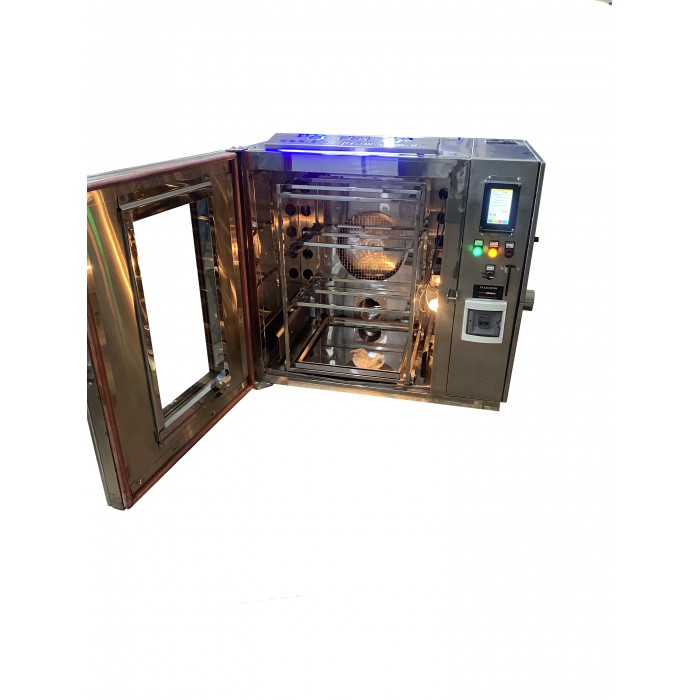

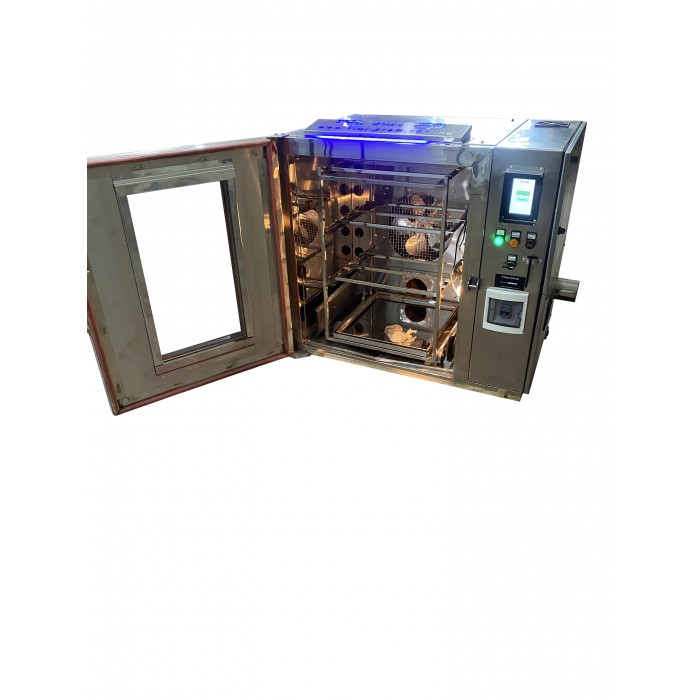

A convenient hanging system with a removable rack.
The rack measures 700х500х500 mm (H×W×D). A set of hooks and brackets for them is included. Grates and skewers are ordered separately. The fat collection tray is located at the bottom of the smoking chamber.
The unit comes with a smoke generator that produces clean, steady, high-quality smoke. The smoke generator's advantages include electric ignition of wood chips and forced smoke convection using a built-in fan. The wood chips smoulder in special cassettes. The generator can operate with one cassette or several at once. The cassettes do not touch the generator's outer walls and do not transfer heat to them. Smoke density is easy to adjust.
Included equipment: chamber with the selected options, smoke generator with 2 cassettes, hanging rack, fat collection tray, set of 9 hook brackets, set of 25 hooks.
An additional product hanging system for the chamber can be ordered: rack (frame), hook rails, hooks, fish skewers and mesh trays for small products.
Warranty: 12 months.
